Shower Head with Separate Handheld Changeover Not Working Properly? Here’s How to Fix It

Is your shower head with a separate handheld changeover suddenly failing to switch modes, delivering weak pressure, or leaking unexpectedly? This is a frustrating issue, but often one that can be resolved with a bit of troubleshooting. This comprehensive guide will walk you through the common causes of a malfunctioning shower head and handheld system, providing step-by-step instructions and expert tips to get your shower back in perfect working order. We’ll cover everything from simple fixes to more complex repairs, ensuring you have the knowledge and confidence to tackle the problem head-on.

Understanding the Anatomy of Your Shower System

Before diving into troubleshooting, it’s crucial to understand the basic components of a shower head with a separate handheld changeover. These systems typically consist of:

• The Main Shower Head: The fixed shower head, often mounted directly to the shower arm.
• The Handheld Shower Head: A detachable shower head connected via a flexible hose.
• The Diverter Valve: This critical component controls the flow of water, directing it to either the main shower head or the handheld shower head. It’s often a lever, knob, or push-button located on the shower head assembly.
• The Shower Arm: The pipe that extends from the wall and connects to the main shower head.
• The Water Supply Lines: Hot and cold water pipes that feed into the shower valve.

Understanding how these parts interact is the first step in diagnosing why your shower head with separate handheld changeover not working properly.

Common Culprits: Why Your Shower Head Isn’t Working

Several factors can contribute to a shower head malfunction. Identifying the root cause is essential for effective repair.

• Mineral Buildup: Hard water contains minerals like calcium and magnesium that can accumulate inside the shower head and diverter valve, restricting water flow and causing the changeover mechanism to seize.
• Diverter Valve Issues: The diverter valve itself can become worn, corroded, or clogged, preventing it from properly directing water flow. This is a very common cause of issues.
• Low Water Pressure: Insufficient water pressure to the shower can prevent the diverter valve from functioning correctly, or cause weak spray from either shower head.
• Clogged Shower Heads: Mineral deposits, sediment, or debris can clog the nozzles of both the main and handheld shower heads, reducing water pressure and altering spray patterns.
• Hose Problems: Cracks, kinks, or leaks in the handheld shower hose can reduce water pressure and cause water to spray where it shouldn’t.
• Worn Washers and O-Rings: These small rubber components provide a watertight seal in various parts of the shower system. Over time, they can degrade and cause leaks.

Step-by-Step Troubleshooting: Diagnosing the Problem

Follow these steps to pinpoint the source of the issue:

1. Check Water Pressure: Ensure you have adequate water pressure throughout your home. If other faucets and fixtures are also experiencing low pressure, the problem may lie with your main water supply.
2. Inspect the Diverter Valve: Examine the diverter valve for any signs of damage, corrosion, or mineral buildup. Try moving the diverter lever or button to see if it feels stiff or sticky.
3. Examine the Shower Heads: Inspect both the main and handheld shower heads for mineral deposits or clogs. Look closely at the spray nozzles for any obstructions.
4. Check the Hose: Visually inspect the handheld shower hose for any cracks, kinks, or leaks.
5. Listen for Leaks: Turn on the shower and listen carefully for any hissing or dripping sounds that could indicate a leak.

Detailed Fixes: Restoring Your Shower to Its Full Potential

Once you’ve identified the problem, you can begin implementing the appropriate solution.

Descaling and Cleaning Shower Heads and Diverter Valves

Mineral buildup is a common culprit. Here’s how to tackle it:

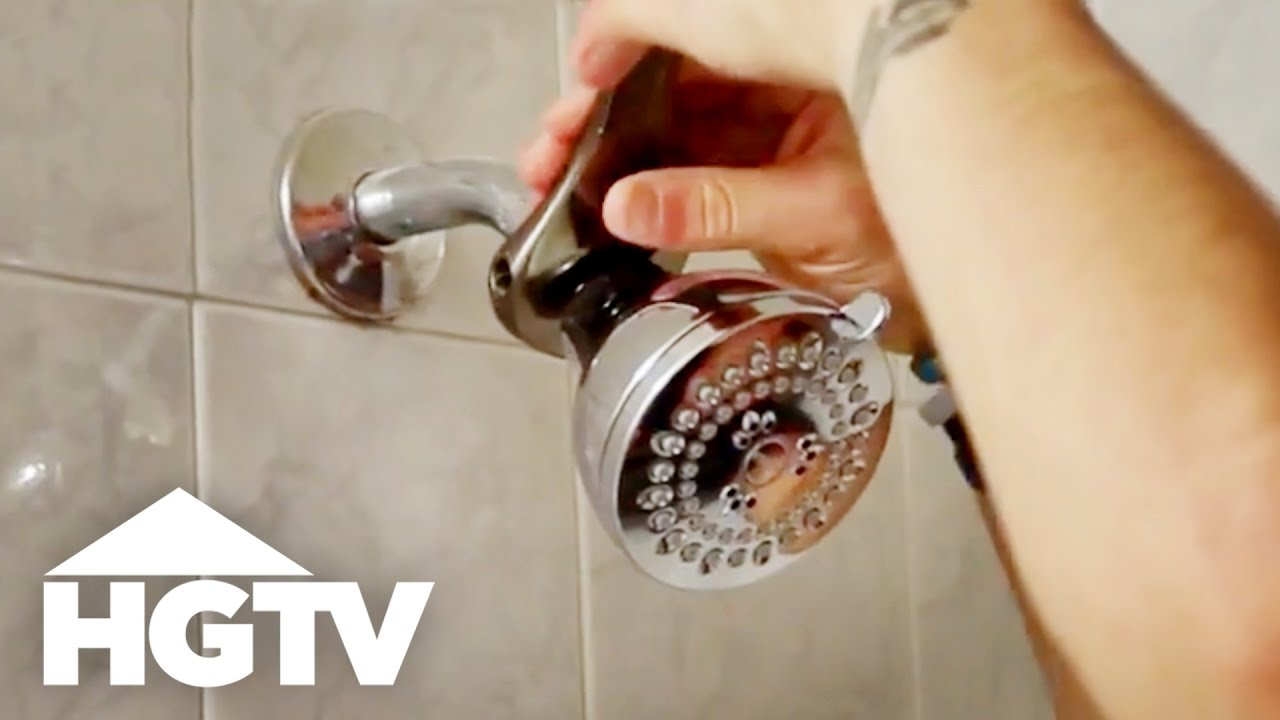

1. Remove the Shower Head: Carefully detach the shower head from the shower arm. Use a wrench if necessary, but protect the finish with a cloth to prevent scratches.
2. Soak in Vinegar: Submerge the shower head in a solution of white vinegar and water (50/50 mix) for at least 30 minutes, or preferably overnight. Vinegar’s acidity dissolves mineral deposits.
3. Clean the Nozzles: Use a toothbrush or a small needle to gently scrub or poke out any remaining mineral deposits from the spray nozzles.
4. Clean the Diverter Valve: If possible, disassemble the diverter valve and soak the individual parts in vinegar. If disassembly isn’t possible, try spraying vinegar directly into the valve opening and working the lever or button back and forth.
5. Rinse and Reassemble: Thoroughly rinse all parts with clean water and reassemble the shower head and diverter valve.

Replacing a Faulty Diverter Valve

If cleaning doesn’t restore the diverter valve’s function, replacement may be necessary.

1. Turn Off the Water Supply: Shut off the water supply to the shower at the main shutoff valve.
2. Remove the Old Diverter Valve: Carefully disassemble the shower head assembly to access the diverter valve. Note the orientation of the valve before removing it.
3. Install the New Diverter Valve: Install the new diverter valve in the same orientation as the old one. Use plumber’s tape on the threads to ensure a watertight seal.
4. Reassemble the Shower Head: Reassemble the shower head assembly, making sure all connections are tight.
5. Turn On the Water Supply: Slowly turn on the water supply and check for leaks.

Addressing Low Water Pressure

Low water pressure can stem from various sources. Here are some things to check:

• Check Your Water Meter: Ensure the main water valve at your water meter is fully open.
• Inspect for Leaks: Check for leaks in your plumbing system, as these can reduce water pressure.
• Clean Aerators: Clean the aerators on your faucets, as these can become clogged with sediment.
• Consider a Pressure Booster: If low water pressure is a persistent problem, you may need to install a pressure booster pump.

Replacing a Damaged Hose

Replacing a damaged handheld shower hose is a straightforward process:

1. Unscrew the Old Hose: Unscrew the old hose from the shower head and the water supply connection.
2. Install the New Hose: Screw the new hose onto the shower head and the water supply connection. Use plumber’s tape on the threads to ensure a watertight seal.

Replacing Worn Washers and O-Rings

Leaks around the shower head or diverter valve often indicate worn washers or O-rings.

1. Disassemble the Connection: Carefully disassemble the connection where the leak is occurring.
2. Replace the Washer or O-Ring: Remove the old washer or O-ring and replace it with a new one of the same size and type.
3. Reassemble the Connection: Reassemble the connection, making sure it’s tight but not overtightened.

Selecting the Right Replacement Parts

When replacing parts, it’s crucial to choose the correct ones for your shower system. Here are some tips:

• Identify the Brand and Model: Knowing the brand and model of your shower head will help you find compatible replacement parts.
• Take Measurements: Measure the size of any washers, O-rings, or hoses you need to replace.
• Consult a Plumbing Professional: If you’re unsure about which parts to choose, consult a plumbing professional for advice.

Preventative Maintenance: Keeping Your Shower in Top Shape

Regular maintenance can prevent many of the problems discussed above.

• Regular Cleaning: Clean your shower head and diverter valve regularly to prevent mineral buildup.
• Inspect for Leaks: Check for leaks periodically and address them promptly.
• Replace Worn Parts: Replace worn washers, O-rings, and hoses as needed.

The Value of a Functional Shower System

A properly functioning shower head with separate handheld changeover provides convenience, flexibility, and a more enjoyable showering experience. Being proactive in addressing issues and performing regular maintenance will ensure your shower system remains in optimal condition for years to come. Don’t underestimate the impact of a good shower; it can be a crucial part of your daily routine and overall well-being. Our experience has shown that tackling these issues early prevents more significant problems down the line.
